HDP12M
4K Mini HDMI Splitter 1x2
128.825UK
Introduction

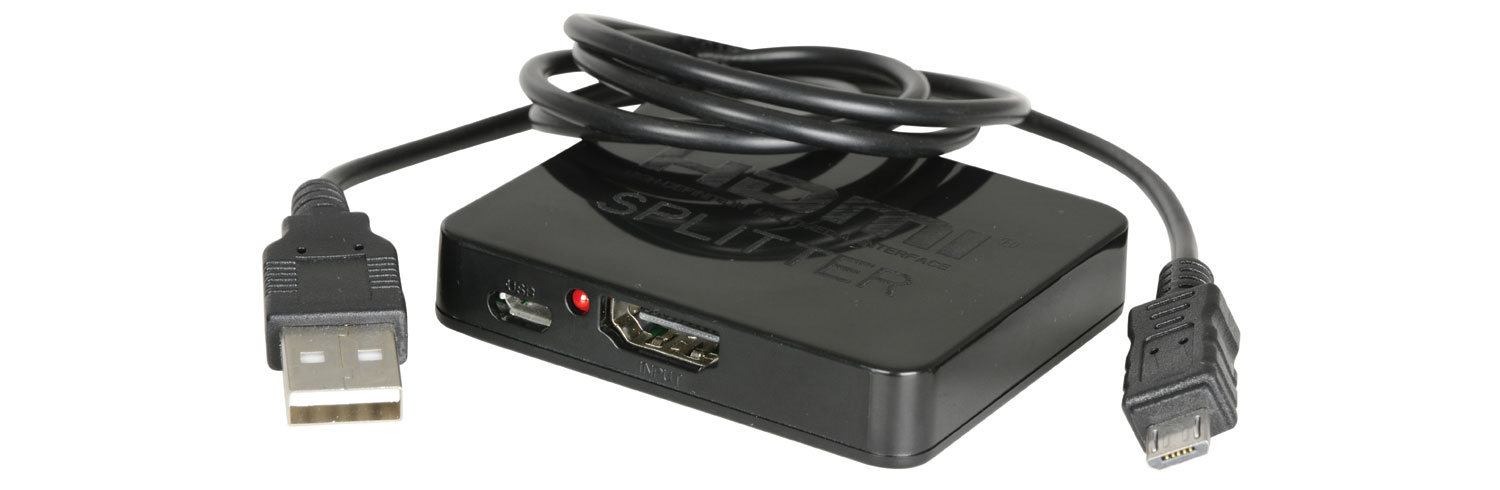

This 4K compatible mini HDMI splitter allows a single HDMI source to be connected to two displays at the same time. Supplied with an additional USB power lead should it be required, it can also be placed at the end of a long HDMI cable to regenerate the signal.

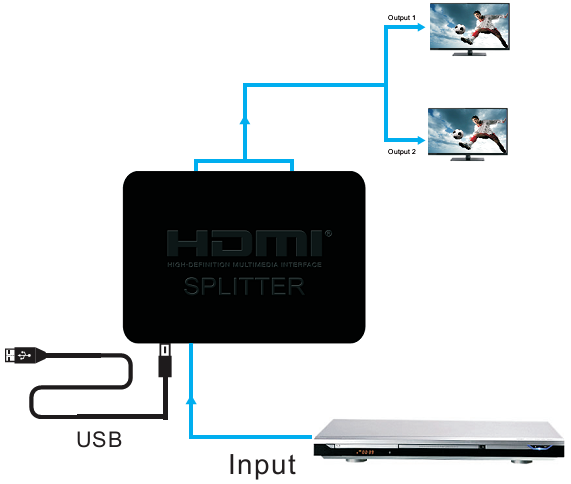

Connection Instructions
Using an HDMI cable of the required length, connect one end to the input port of the device and the other up to your source device (max length 15m).
Then using 2 additional HDMI cables connect up your display devices to the output ports (max length 20m).

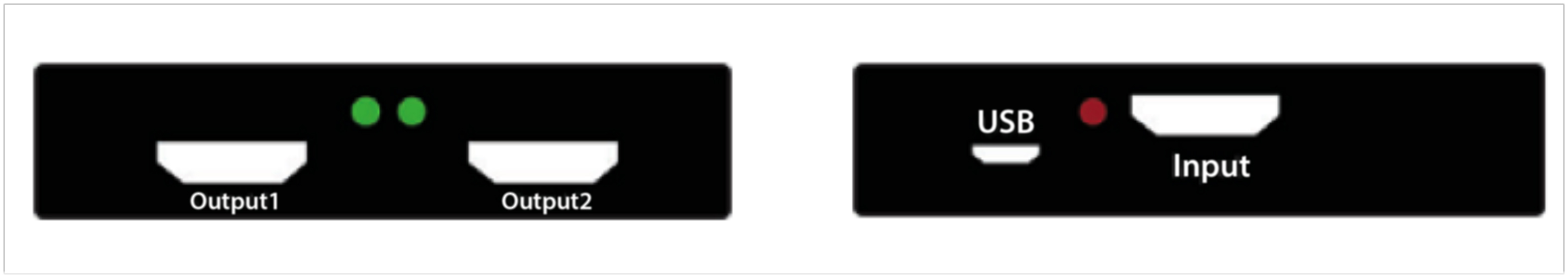

The green LED’s on the front of the unit will indicate which device is live at any one time.
An additional USB power cable is supplied should your source devices not provide enough HDMI power for the unit.
In The Box
- HDMI Splitter 1x2.
- USB Power Lead (use only if required).
Specification
| Specification | Value |
|---|---|
| HDMI version | 1.4a |
| Video format | 4K, Up to 1080p @ 60Hz, 3D, 36bit deep colour |
| Audio format | DTS-HD, Dolby-trueHD, DTS/Dolby-AC3, DSD HD(HBR) |
| Operating temperature range | -15 to +55°C |
| Max. bandwidth | 340MHz |
| Max. baud rate | 3.4Gbps |
| Max. working current | 350mA |
| Dimensions | 62 x 51 x 11mm |
| Weight | 31g |
Precautions
 |
CAUTION |  |
| RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
| CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL | ||
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
AVSL Group Ltd, Unit 2 Bridgewater Park, Taylor Road, Manchester, M41 7JQ, Unitied Kingdom
AVSL (EUROPE) Ltd, Unit 3D North Point House, North Point Business Park, New Mallow Road, Cork, Ireland
