4K HDMI Digital Audio Extractor

Introduction

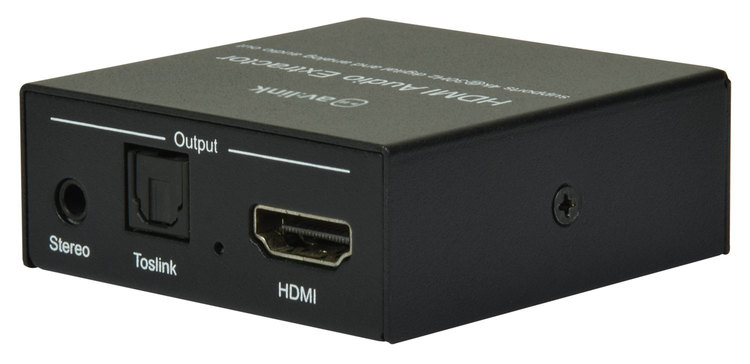

A simple USB powered HDMI to HDMI unit that extracts digital optical and/or analogue audio from a HDMI source signal. Easy to install and operate, this handy little device is ideal for use with games consoles, LED TV's, projectors and Blu-Ray players that have no optical audio or 3.5mm headphone output.

In The Box

1. HDMI audio extractor
2. 5V DC USB power lead
3. User Manual

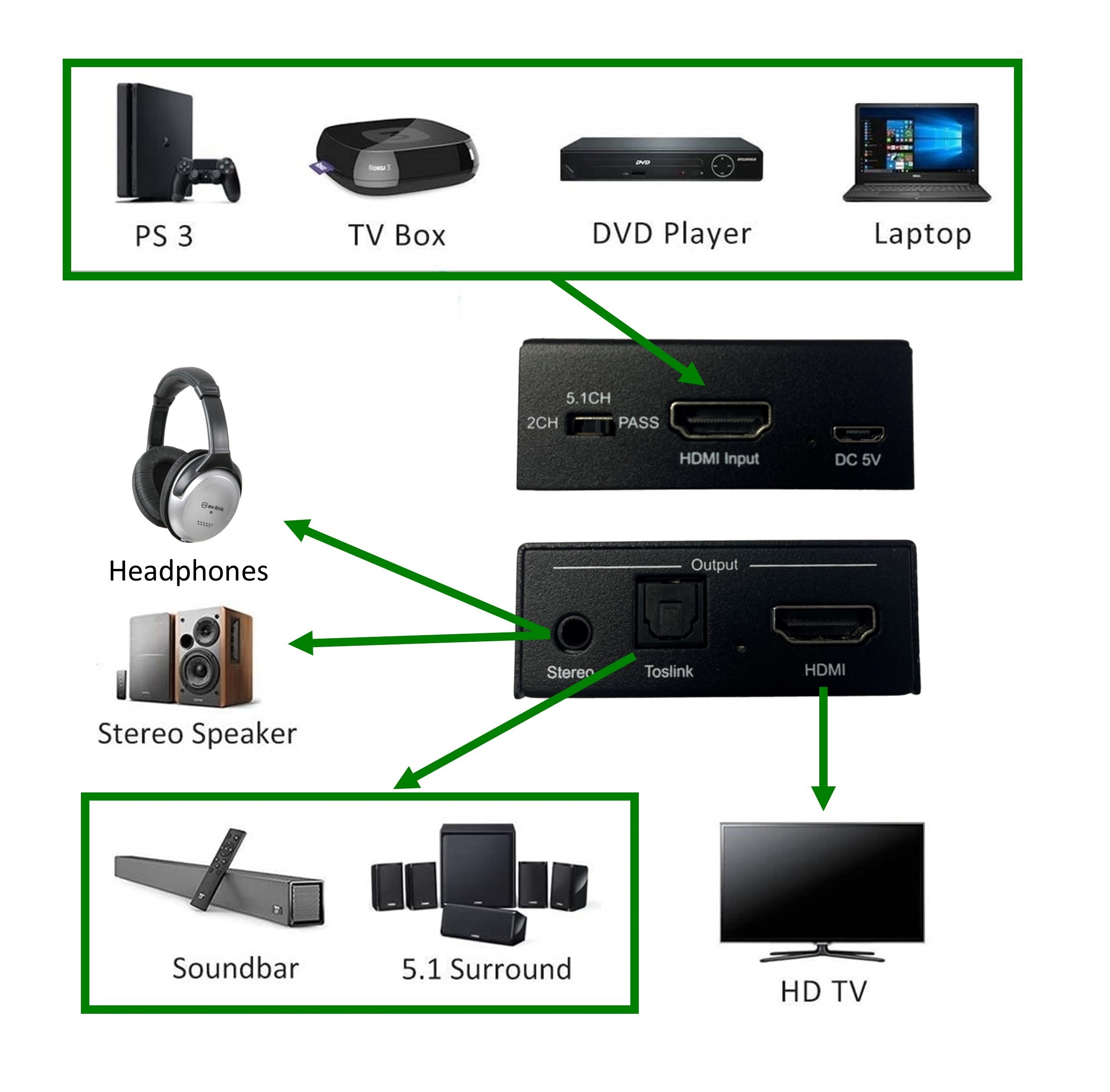

Connection Instructions

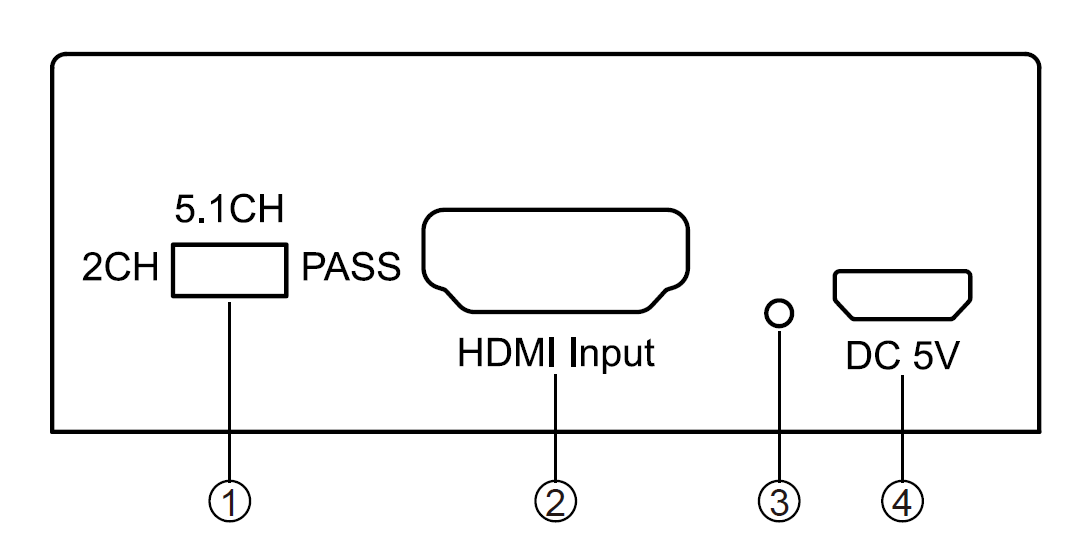

• Connect a HDMI lead from your source device to the HDMI input port on the back of the unit (2).

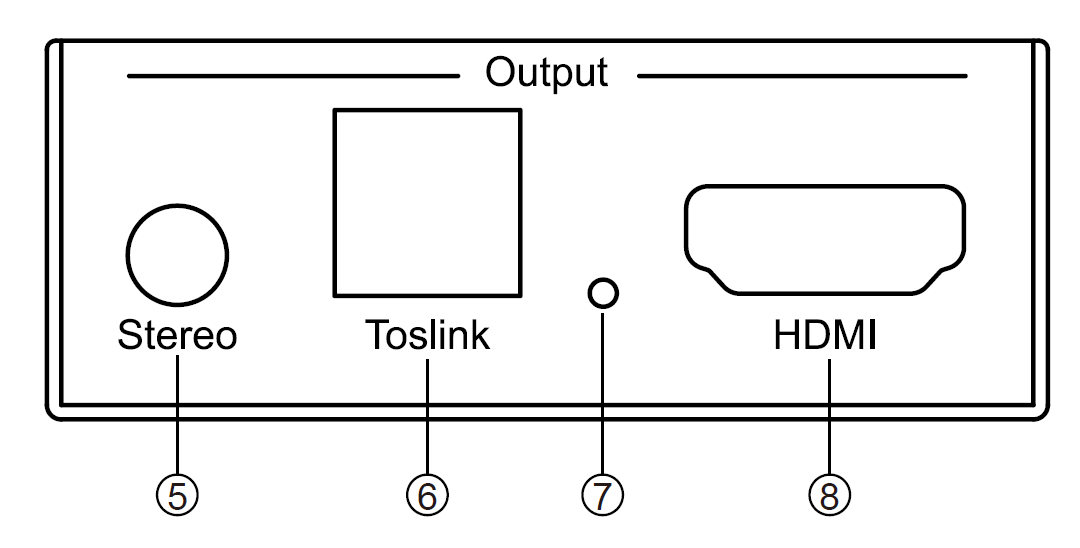

• Next, connect a 2^nd HDMI lead from the output port on the front of the unit (8) to your display device (TV, monitor or projector).

• Connect the 5V DC USB power lead supplied (4) to a suitable USB power supply (5V max.)

• Finally connect an optical (Toslink) cable to the Toslink output on the front of the unit (6) and a compatible digital audio source device (soundbar, amplifier or surround system).

• For optional 3.5mm stereo output, connect either headphones or a compatible audio device using a 3.5mm stereo audio cable to the stereo audio port on the front of the unit (5)

• Switch on the power to the unit and a red LED should illuminate on the back of the unit (3)

• Set the audio selection switch on the back of the unit (1) to the desired audio output as below:

2CH: Max. audio output via HDMI/Toslink is 2 channel stereo.

5.1CH: Max. audio output via HDMI/Toslink is 5.1 channel surround (DSD and HBR).

PASS: The unit directly reads the audio EDID information from the connected display device, and outputs correspondingly according to the highest compatible audio format that the device can support.

• If everything is connected correctly and all devices are compatible, the blue LED on the front of the unit (7) will illuminate to show the unit is functioning properly.

• If there are any signal issues on the display device or connected audio device, please check the connections and cables accordingly.
