HDMI to Composite RCA AV Converter
128.512UK
Introduction
The MINI HDMI to AV signal converter which will convert HDM video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, while support DVI system sideline signals. To help users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i, 576i,).So that can play on TV, VHS VCR, DVD recorders, etc and support NTSC and PAL two TV format.
Features
- No need to install drivers, portable, flexible, plug and play.
- Low power, No power adaptor.
- Support NTSC and PAL two standard TV formats output.
- Compatible HDMI1.3.
Ppackage Contents
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
- 1 Main unit (HDMI to AV Converter).
- 1 USB Cable.
- 1 User Manual.

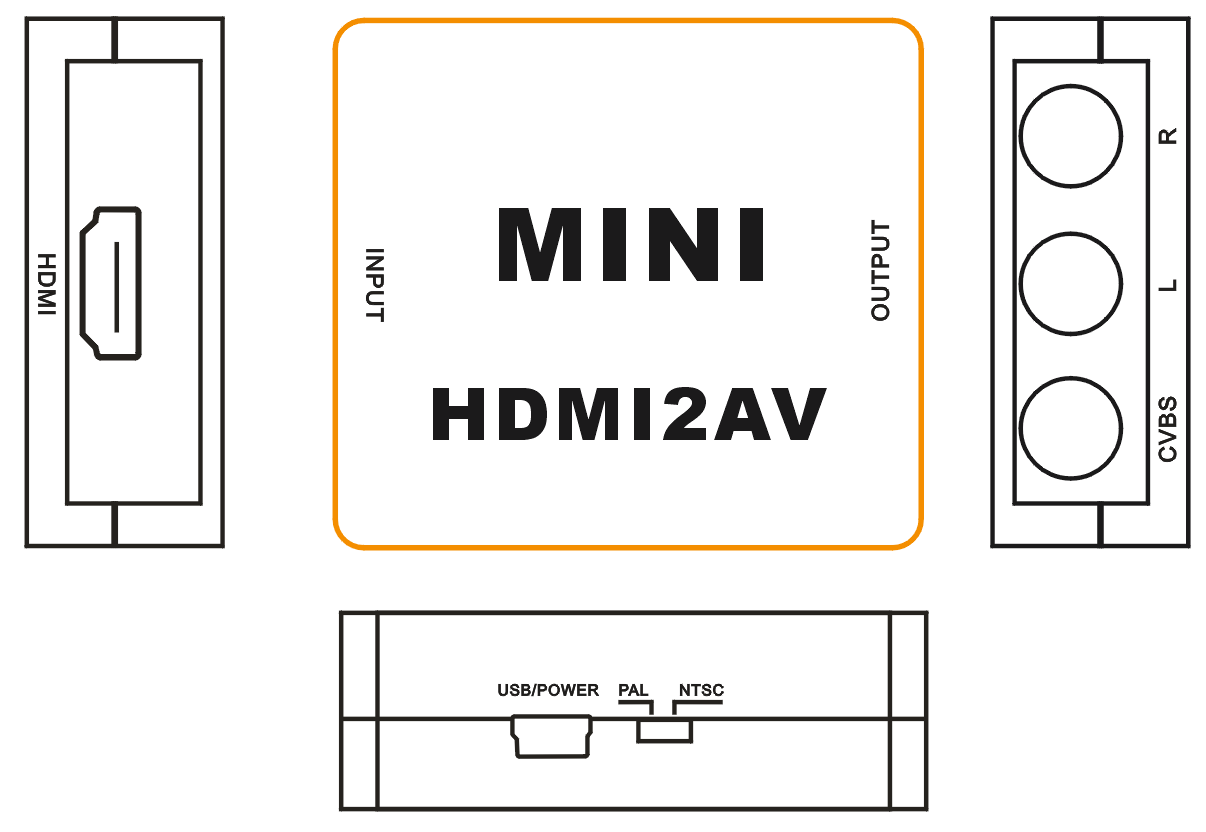

Panel Description
Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.
Back Panel: Top Panel: Front Panel

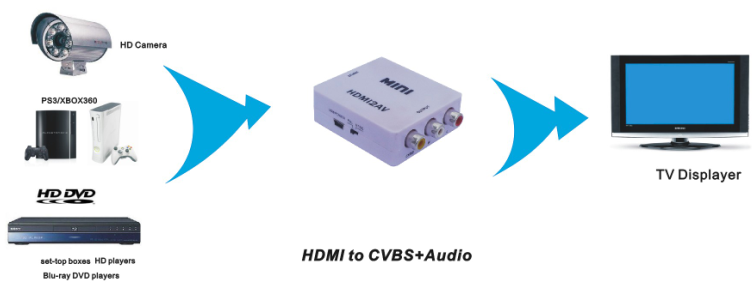

Connection Diagram
Specification
| Specification | Value |
|---|---|
| Input connections | HDMI socket |
| Output connections | RCA x 3 (CVBS, Audio L/R) |
| Video input | 1080p@60Hz, 720p@60Hz |
| Video output | PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N |
| Power : input | DC/5V (mini USB) |
| Dimensions | 66 x 55 x 20mm |
| Weight | 38g |
Precautions
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
