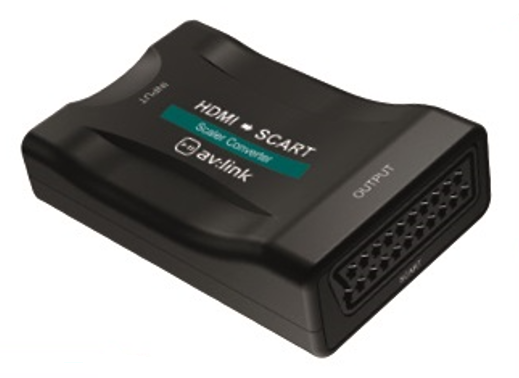

HDMI to Scart Converter
122.417UK
Introduction

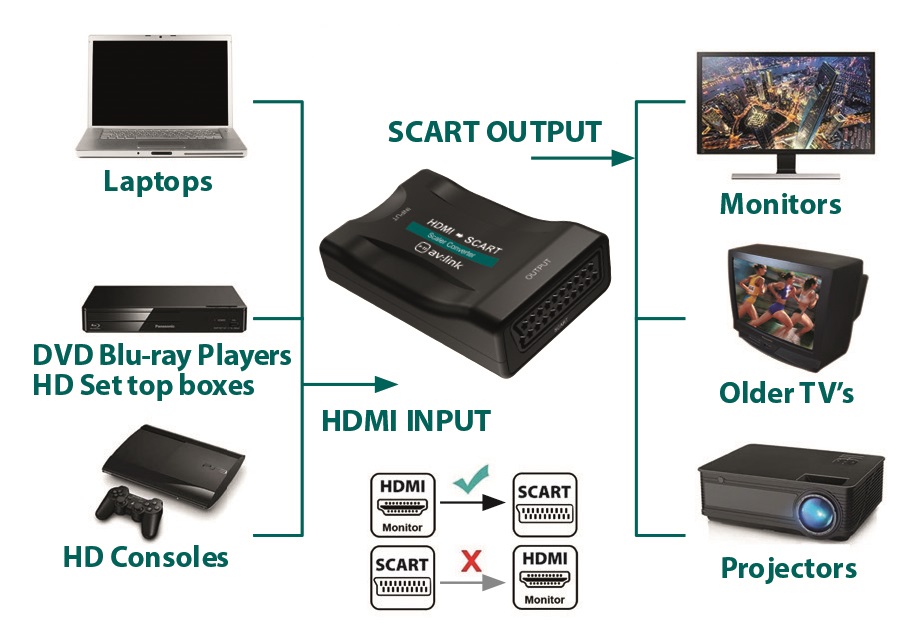

A simple USB powered unit that converts high-definition HDMI video signals for use with older TV's and displays with an analogue Scart interface. Simple to install and operate, this handy little device is ideal for use with Blu-Ray players, games consoles, Sky HD boxes, laptops and more.
Connection Instructions

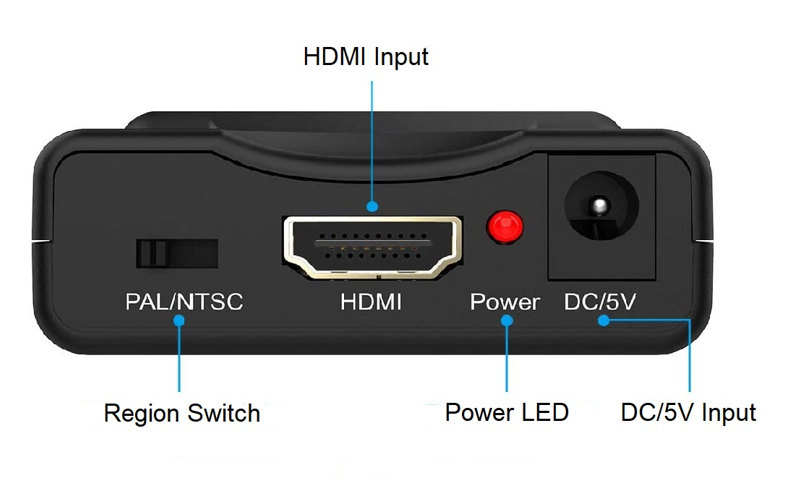

Using a HDMI lead of the required length, connect one end to the input port of the converter and the other to the output port on your source device (max length 7m).

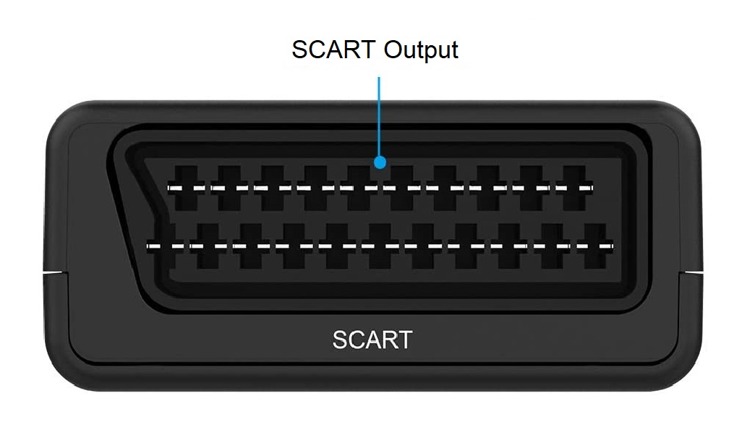

Then Using a Scart lead of the required length, connect one end to the output port of the converter and the other to the input port of your display device (max length 8m).
Using the USB power lead supplied connect the DV/5V jack to the correct port on the converter and the USB end to a compatible 1A power supply and switch on.
The red Power LED should now illuminate to indicate the converter is receiving sufficient power to function correctly.
Finally select the required region using the switch on the converter, PAL for UK and EU and NTSC for US content.
In The Box
- HDMI to Scart Converter
- USB Power Lead (DV5V 1A)
- User guide
Troubleshooting
| Problem | Solution |
|---|---|
| Power LED doesn’t illuminate | Ensure the USB power lead is correctly connected to the converter and that a suitable 1A power supply is used and switched on. |
| No sound or poor sound quality | 1. Ensure both the Scart and HDMI leads are correctly fitted to the converter and both your source and display devices. 2. Ensure all leads used are of sufficient condition and quality. 3. Ensure the volume of the display device is not turned down or muted. |
| No images or poor image quality | 1. Ensure the source device is switched on and the Scart lead is connected correctly. 2. Ensure all leads used are of sufficient condition and quality. 3. Ensure the resolution of the display device is compatible with the selected resolution on the converter and reduce if necessary. |
Specification
| Specification | Value |
|---|---|
| Input | HDMI (up to v1.3 @ 60fps) |
| Output | Scart (PAL/NTSC) |
| Max. bandwidth | 300MHz |
| Max. baud rate | 10.2 Gbps |
| Max. cable length | HDMI Input <= 7m; Scart output <=8m |
| Max. working current | 600mA |
| Operating temperature range | -10°C to 55°C |
| Power : input | DC/5V 1A |
| Dimensions | 88.5 x 57.5 x 25mm |
| Weight | 60g |
Precautions
 |
CAUTION |  |
| RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
| CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL | ||
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
