OT20A

Outdoor Amplified HDTV Aerial for Caravans and Boats

120.910UK

Introduction

Outdoor HDTV aerial specially designed for camping and marine use and compatible with Digital Terrestrial TV and DAB/FM radio signals. The built-in amplifier gives a clear picture even if the signal reception is weak. Can be mounted on a pole of up to 38mmØ using the clamp supplied.

Features

Compatible with Digital Terrestrial TV and DAB/FM radio signals.
Ideal for installation on caravans, campers or boats.
Unidirectional with built-in high gain amplifier.
Integrated LTE signal filter avoids interference from 4G/5G mobile signals.
Features a splitter to connect a second radio or TV set.
Supplied with mounting materials, 6m connection cable and power supply.

In The Box

Antenna main unit
Mast clamp
Water-proof boot
Power insert
DC cord
AC/DC adapter
Coaxial cable 6m
1.2m TV cable with RF male and F connector

Installation

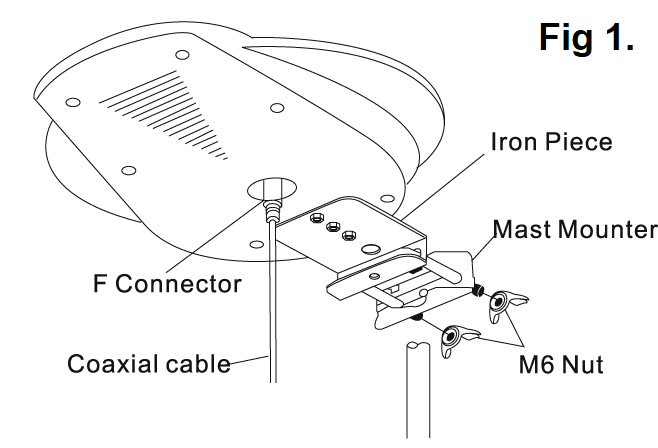

Connecting the mast fixture to the antenna: Use the 2 screws supplied, connect the mast fixture to the antenna body and tighten it securely (see Fig 1).

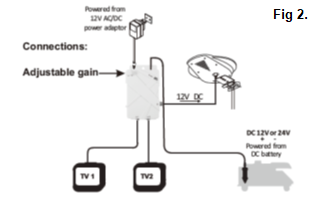

Power supply cord connection: Connect the coaxial cable to the amplifier input. Plug the F connector to the socket on the bottom of the antenna and push the water-proof kit over it. Choice of AC mains powered or 12/24V DC powered (see Fig 2).

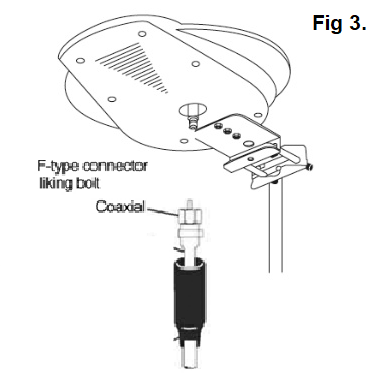

Waterproof boot installation (Fig 3)

Connect the coaxial cable with the F-type Connector.
Connect the coaxial cable to the antenna output terminal, and then push the cover inward.
Install as seen in picture opposite.

Operation Instructions

Install the antenna away from any source of interference, such as large electrical appliances, mobile phones and Bluetooth devices.
Place the antenna near a window when installing indoors.
Try to install the antenna as high as possible to avoid temporary signal loss and interference when there are interceptions between the antenna and the transmission tower.
Point the antenna in the direction of the nearest TV signal transmitter tower.

Specification

Specification	Value
Frequency range : UHF	470MHz - 694MHz(5G)
Frequency range : VHF	40MHz - 230MHz
Impedance	75 ohms
Gain : UHF	20dB
Gain : VHF	20dB
Max. loss	2dB
Output level	100dBµV max.
Power supply	230Vac, 50Hz (3W) / 12Vdc, 50mA
Dimensions	260 x 334 x 80mm
Weight	1.5kg

Precautions

	CAUTION
	RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit

Safety Notice

Prior to use, read through this safety guide.
Pay attention to safety warnings.
Observe all operating requirements.
For any items designed for indoor use only, do not operate near water or in humid environments.
For cleaning, only use a lint-free, dry cloth.
Install according to the specifications.
Place away from heat sources or heating appliances.
During placement, ensure adequate support for the product and access to controls and connectors.
Do not obstruct any cooling vents or openings and allow adequate space for air flow.
Use only power connections supplied with the product or suitable equivalents.
Do not modify the equipment in any way.
For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
Keep powered products and batteries away from the reach of children.
In case of malfunction, water ingress or other damage, consult qualified service personnel.
Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
For any Earthed mains product, ensure that the power supply has a protective Earth connection.
Keep all packaging materials out of reach of children.

Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
