ST07P

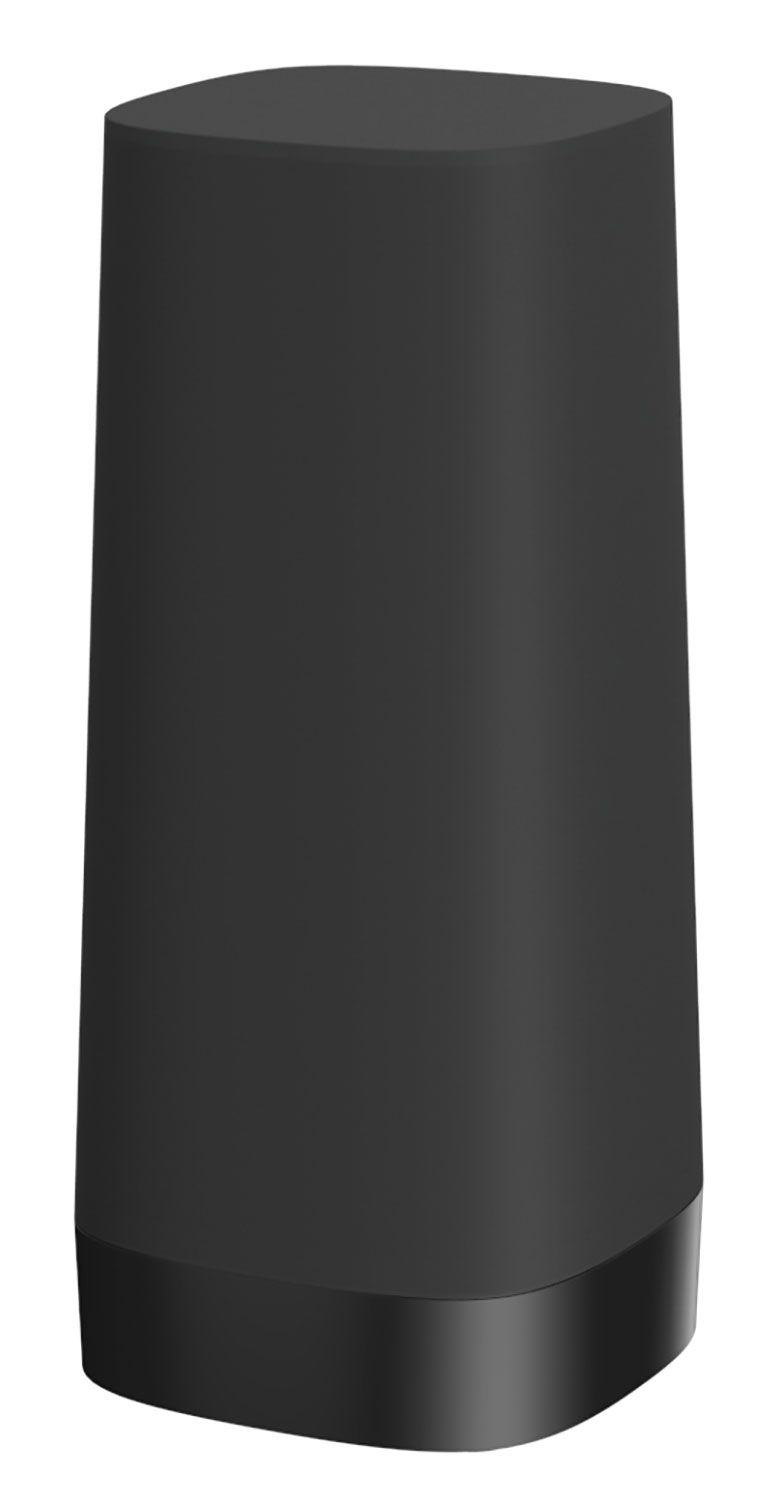

Stylish Indoor UHF HDTV Aerial
120.530UK
Introduction
A sleek and stylish indoor aerial designed to complement existing home devices and look great in any room in your home. Its unique omni-directional design easily receives all locally available Digital TV signals and the 1.5m coaxial lead provides flexibility in placement for the best signal reception.
Features
- Stylish outlook that looks great in any home and is designed to complement existing home devices.
- Optimized for digital reception - receives Digital Terrestrial TV broadcasts with ease.
- Unique omni-directional design that receives all locally available Freeview channels.
- Simple plug and play setup and operation.
- 1.5m RF (Coaxial) lead allows ideal placement away from nearby devices causing interference.
Connection and Operation

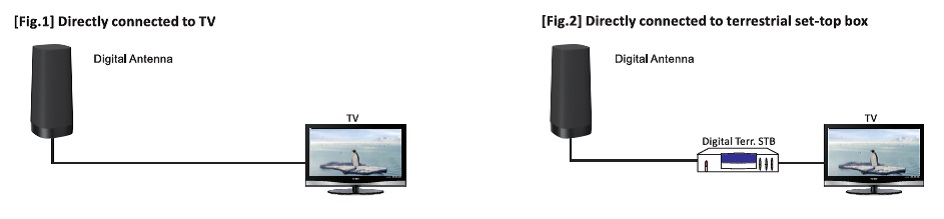

First connect the aerial’s coaxial lead either directly to the back of your Digital TV or Terrestrial set top box.
Place the aerial in your desired location, for the best reception try and position as high as possible and away from large power consuming devices such as air-conditioning units, elevators, microwave ovens, hair dryers etc.
Finally run the channel scan operation on your device and once complete test the quality of the channels. It may be necessary to reposition the aerial and try again if the signal quality is low or you are receiving interference or missing channels.
Specification
| Specification | Value |
|---|---|
| Frequency range : UHF | 470-694MHz (5G) |
| Impedance | 75 Ohms |
| Reception distance | Up to 45 miles |
| Gain | 3-7 dB |
| Cable : length | 1.5m |
| Dimensions | 200 x 87 x 87mm |
| Weight | 375g |
Precautions
 |
CAUTION |  |
| RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
| CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL | ||
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
