ST25P

Paper-thin Transparent HDTV Aerial

120.515UK

Introduction

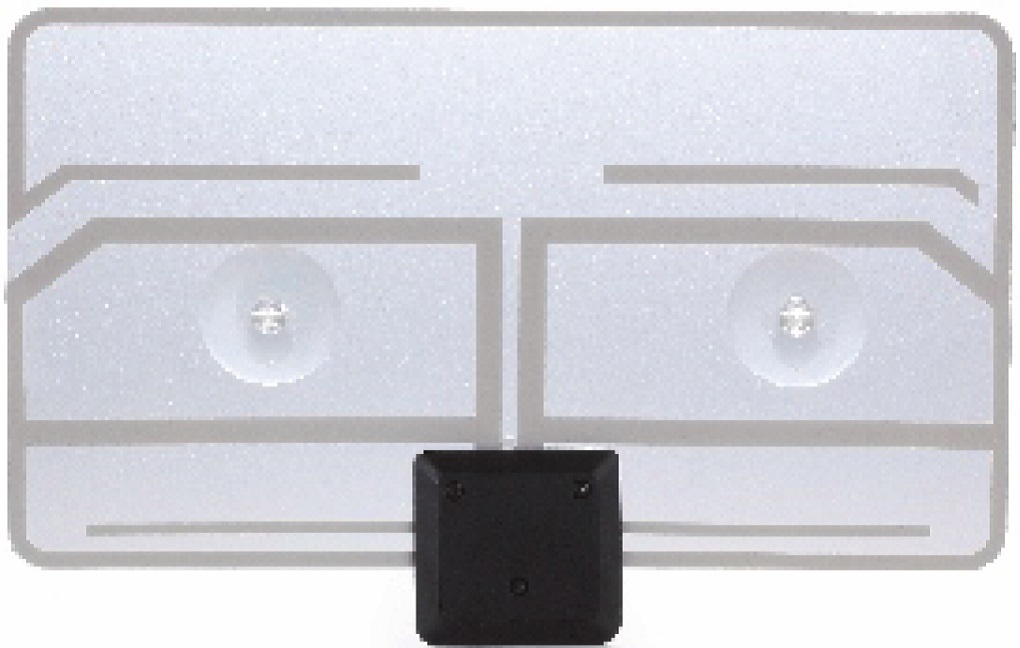

A lightweight, paper-thin aerial ideal to be fixed to a window or an outside facing wall, capable of receiving Digital Terrestrial TV and DAB/FM radio signals. The easy to conceal, transparent design means the aerial won’t restrict your view. It comes with an extra-long 3m RF (Coaxial) lead, meaning you can position it in the area with the best reception in your home.

Features

Lightweight, paper-thin aerial that can be fixed either to a window or an outside facing wall.
Compatible with Digital Terrestrial TV and DAB/FM radio signals.
Easy to conceal, transparent design.
Supplied with extra-long 3m RF (Coaxial) lead, self-adhesive pad and window suckers.

Connection and Operation

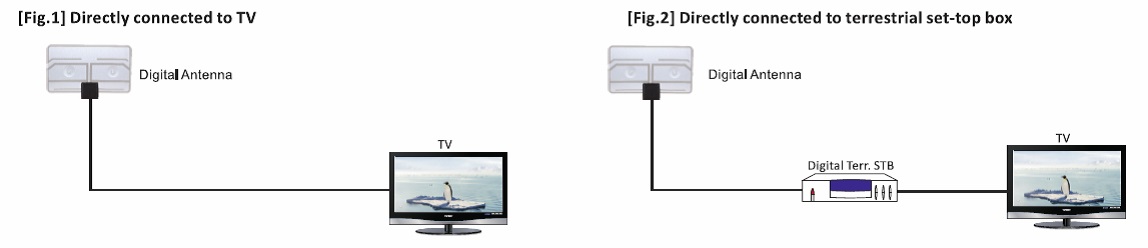

Connect the aerial lead either directly to the back of your Digital TV [Fig.1] or Terrestrial STB [Fig.2] as shown in the diagrams above.
Next position the aerial in your desired location using either the self-adhesive pad or window suckers supplied.
For the best reception try and position as high as possible on an outside facing wall or window, away from large power consuming devices such as air-conditioning units, elevators, microwave ovens, hair dryers etc.
Finally run the channel scan operation on your TV or STB Setup and once complete test the quality of the channels. It may be necessary to reposition the aerial and try again if the signal quality is low or you are receiving interference or missing channels.

Specification

Specification	Value
Frequency range	VHF: 47-230MHz, UHF: 470-694MHz (5G)
Impedance	75 Ohms
Reception distance	Up to 45 miles
Gain	6-8 dB
Dimensions	228 x 128 x 0.5mm
Weight	60g

Precautions

	CAUTION
	RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit

Safety Notice

Prior to use, read through this safety guide.
Pay attention to safety warnings.
Observe all operating requirements.
For any items designed for indoor use only, do not operate near water or in humid environments.
For cleaning, only use a lint-free, dry cloth.
Install according to the specifications.
Place away from heat sources or heating appliances.
During placement, ensure adequate support for the product and access to controls and connectors.
Do not obstruct any cooling vents or openings and allow adequate space for air flow.
Use only power connections supplied with the product or suitable equivalents.
Do not modify the equipment in any way.
For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
Keep powered products and batteries away from the reach of children.
In case of malfunction, water ingress or other damage, consult qualified service personnel.
Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
For any Earthed mains product, ensure that the power supply has a protective Earth connection.
Keep all packaging materials out of reach of children.

Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
