ST36B
Amplified Indoor HDTV Aerial
120.503UK
Introduction

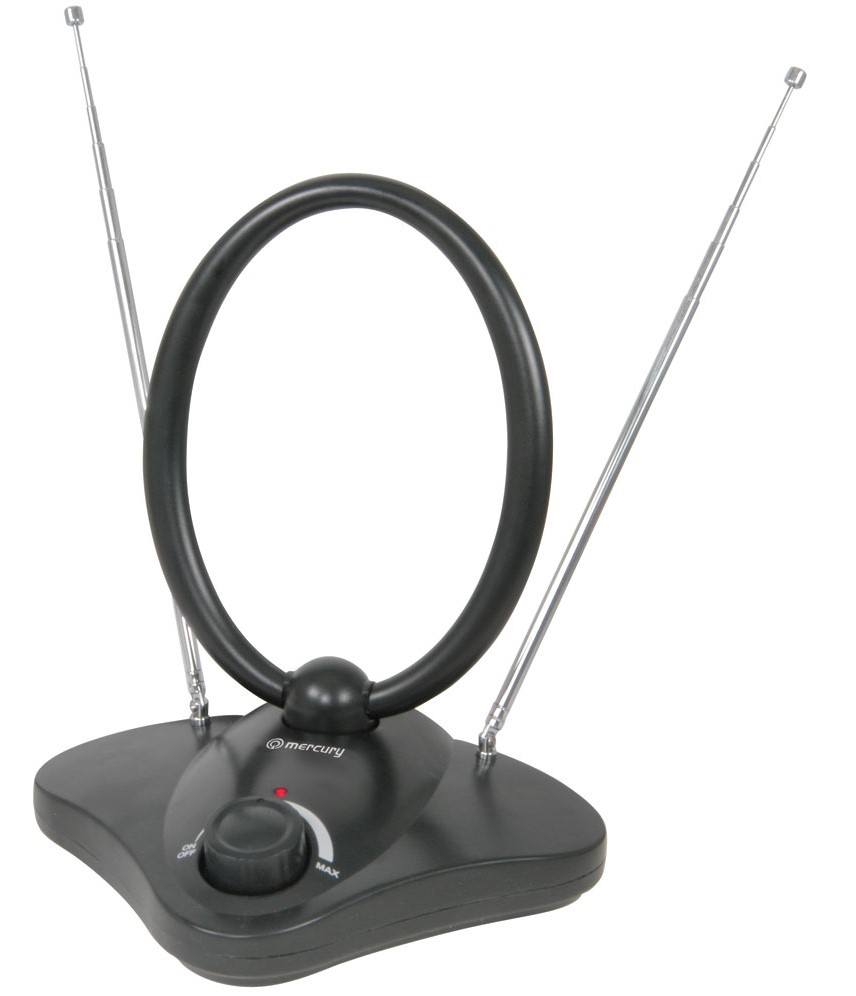

A mains powered, amplified aerial compatible with Digital Terrestrial TV and DAB/FM radio signals. With an adjustable loop aerial for UHF TV signals and two telescopic aerials for VHF and FM radio signals providing maximum flexibilty even in low signal areas. Gain can also be manually adjusted on the unit and there is an LED indicator showing power supply.
Features
- Compatible with Digital Terrestrial TV and DAB/FM radio signals.
- Built-in high gain low noise amplifier for areas with poor signal strength.
- Adjustable loop aerial, pans and tilts for best UHF TV reception.
- 2 x 728mm telescopic antennas for optimum VHF and FM radio reception.
- Variable gain control knob and Power LED indicator.
Connection and operation
Connect the aerial’s coaxial lead either directly to the back of your Digital TV, Terrestrial STB or DAB/FM radio receiver.
Next connect the attached mains plug to a nearby power socket and switch on.
Place the aerial in your desired location, for the best reception try and position as high as possible and away from large power consuming devices such as air-conditioning units, elevators, microwave ovens, hair dryers etc.
Turn the aerial on by rotating the Power/Gain knob on the unit, the Power LED also lights up red. Set the gain control knob to the central setting at this stage.
Finally run the channel scan operation on your device and once complete test the quality of the channels. It may be necessary to reposition the aerial and try again if the signal quality is low or you are receiving interference or missing channels.
You can also try panning and tilting the loop antenna to improve the UHF TV signal.
For VHF and FM radio signals extend and adjust the 2 telescopic antennas on the unit.
Gain can also be increased or decreased by rotating the Power/Gain knob on the unit accordingly.
Specification
| Specification | Value |
|---|---|
| Frequency range : UHF | 470-694MHz(5G) |
| Frequency range : VHF | 40-230MHz |
| Impedance | 75 ohms |
| Reception distance | Up to 65 miles |
| Gain | 36dB |
| Current consumption | 50mA @12Vdc |
| Power supply | 230Vac, 50Hz or 12Vdc 50mA |
| Lead length | 1.2m |
| Dimensions | 195 x 144 x 230mm |
| Weight | 500g |
Precautions
 |
CAUTION |  |
| RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
| CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL | ||
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Indoor use only : The "House" symbol identifes electrical equipment designed primarily for indoor use.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
