Digital USB Type-C Wired Earphones

100.315UK

Introduction

Sleek and stylish earphones that provide both great sound performance and convenient features without burning a hole in your pocket. In-Built digital chip technology delivers impressive HiFi quality sound and an inline hands-free microphone and track control gives you the ability to listen to and take control of your favourite tunes or make and receive calls on the move. Compatible with a wide range of USB Type-C devices and both Google and Siri voice assistant when available.

Features

In-Built digital chip technology delivers impressive sound performance
Compatible with a wide range of USB Type-C devices
Sleek, ergonomic design
In-line hands-free microphone and track control button
Tough and durable build quality
Compatible with Google and Siri voice assistant services

In the box

USB Type-C earphones
Spare earbuds
User guide

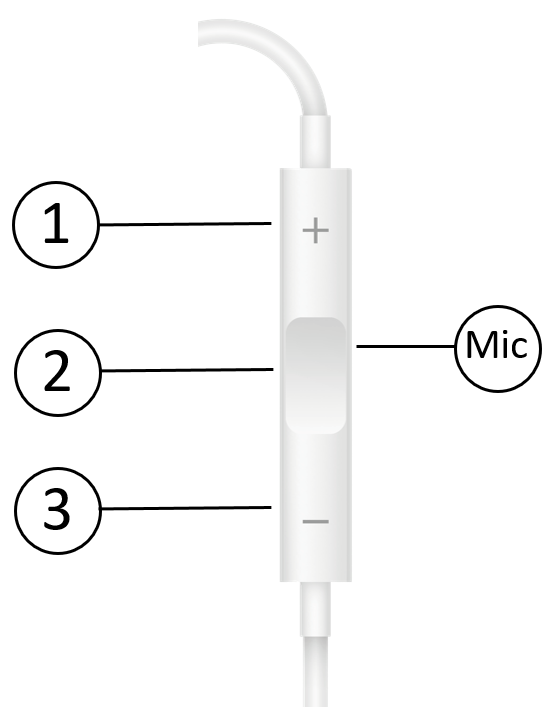

Overview

Volume up button
Multi-Function button
Volume down button

Usage Instructions

Connect the earphones to a compatible device with a USB Type-C socket.
The in-line control panel is capable of volume, track control, voice assistant and handsfree functions.

Note: not all functions are available on all models (see Compatible Devices below).
Press the volume up button (1) and volume down button (3) to adjust the master volume accordingly.
Press the MF (multi-function) button (2) repeatedly to play and pause the current music track.
Press the MF button (2) twice to move to the next music track and three times to move to the previous track.
Press and hold the MF button (2) to open your device’s voice assistant mode.

Note: only compatible devices will run this feature, please check your device user guide for details.
When a phone call is received press the MF button (2) repeatedly to accept and complete the call. To reject the incoming call press the MF button (2) twice.

Compatible Devices

Apple (Music only, not calls) iPad Pro 11” 2018, iPad Pro 12,9” 2018, iPhone 11 Pro.
Asus: Rog Phone.
Google: Pixel 1, Pixel X1, Pixel 2, Pixel 3.
HTC: M10, U11, U11 Plus, U11 Eyes, U10 evo, U12+.
Huawei: P20, P20 PRO, P20 RS, P30, P30 PRO, P40, P40 PRO, MATE X, MATE 9, MATE 9 PRO, MATE 10, MATE 10 PRO, MATE 20, MATE 20 X, MATE 20 PRO, MATE 30, MATE 30 PRO, MAGIC 1, HONOR PLAY, HONOR 8, HONOR 9, HONOR V10, NOTE 10, NOVA 3, NOVA 4, Matebook 13 Computer, Computer M5.
Lenovo: Zuk Z2, Zuk Z2 Pro, S5, Z5.
LG: V30+, G7 +.
Meizu: X8, 16^th.
Nokia: 7 Plus, 8 Sirocco, X6, X7, 8.
Nubia: Z17, Z18, Red Magic.
Oneplus: 6T, 7, Plus 7 Pro.
Oppo: Find X, R17 Pro.
Samsung (Music only, not calls): Galaxy S8, Galaxy S8+, Galaxy S9, Galaxy S9+, Galaxy S10, Galaxy S10+, Galaxy S10E, Galaxy Note 8, Galaxy Note 9, Galaxy Note 10. 14 Sony: XZ1, XZ2, XZ3, XZ2, XZz, XA2 Ultra.
Xiaomi: Mi 5, Mi 5S, Mi 5C, Mi 5X, Mi 6, Mi 6s, Mi 8, Mi 8SE, Mi 8 PRO, Mi 9, Mi 9se, Mi 10, Mi Note 2, Mi Note 3, Mi Mix 2, Mi Mix 2s, Mi Mix 3, Mi Max 2, Mi Max 3, Black Shark, Black Shark 2.

Specification

Specification	Value
Speaker : drivers	10mmØ
Sensitivity	105dB±3
Impedance	32 Ohms
Frequency response	20hz-20khz
Cable : length	1.2m
Connector	USB Type-C
Weight	12g

Precautions

	CAUTION
	RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit

Safety Notice

Prior to use, read through this safety guide.
Pay attention to safety warnings.
Observe all operating requirements.
For any items designed for indoor use only, do not operate near water or in humid environments.
For cleaning, only use a lint-free, dry cloth.
Install according to the specifications.
Place away from heat sources or heating appliances.
During placement, ensure adequate support for the product and access to controls and connectors.
Do not obstruct any cooling vents or openings and allow adequate space for air flow.
Use only power connections supplied with the product or suitable equivalents.
Do not modify the equipment in any way.
For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
Keep powered products and batteries away from the reach of children.
In case of malfunction, water ingress or other damage, consult qualified service personnel.
Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
For any Earthed mains product, ensure that the power supply has a protective Earth connection.
Keep all packaging materials out of reach of children.

Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
