TU4 Quad PLL Tuneable UHF Wireless Microphone System

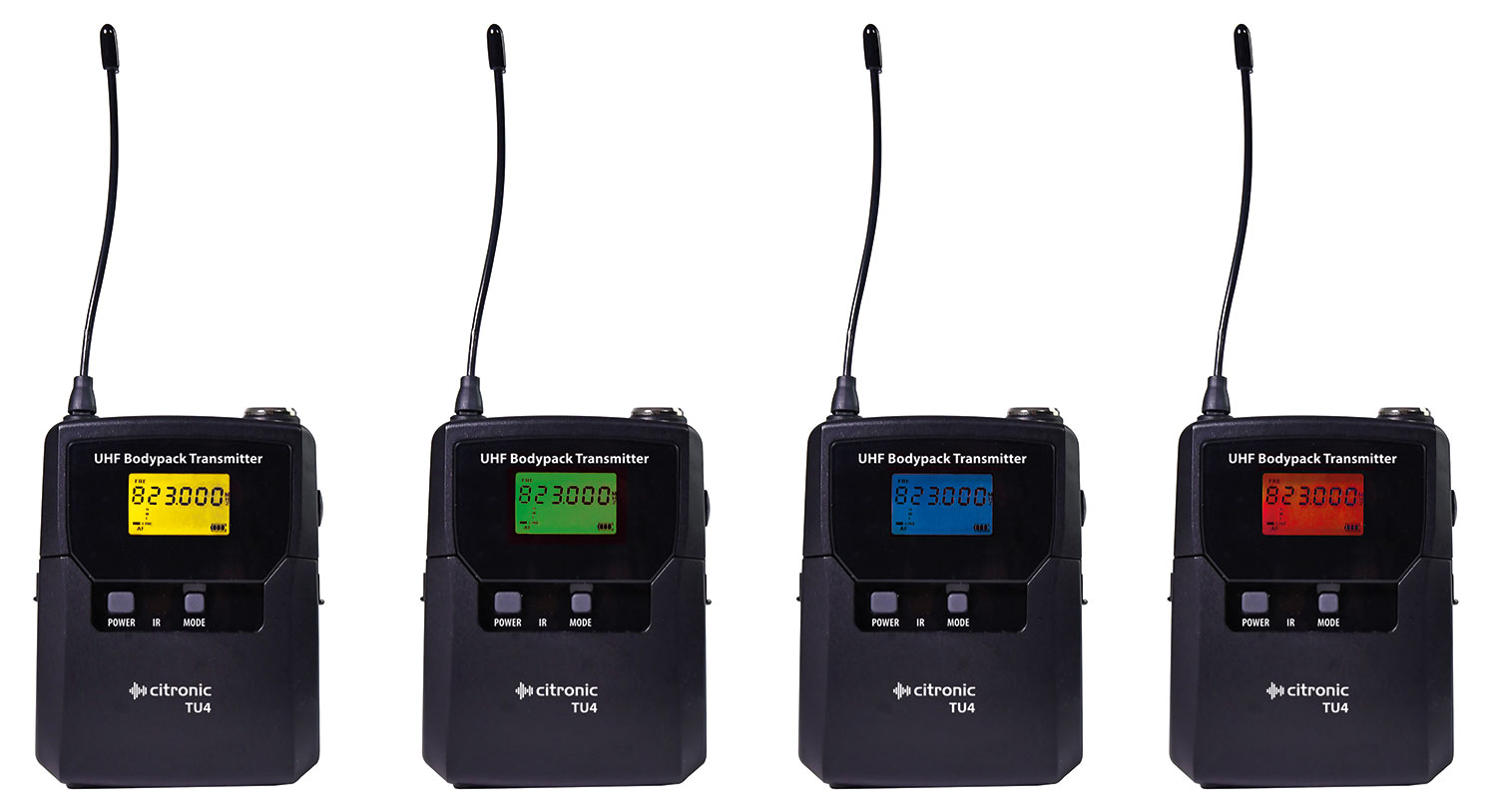

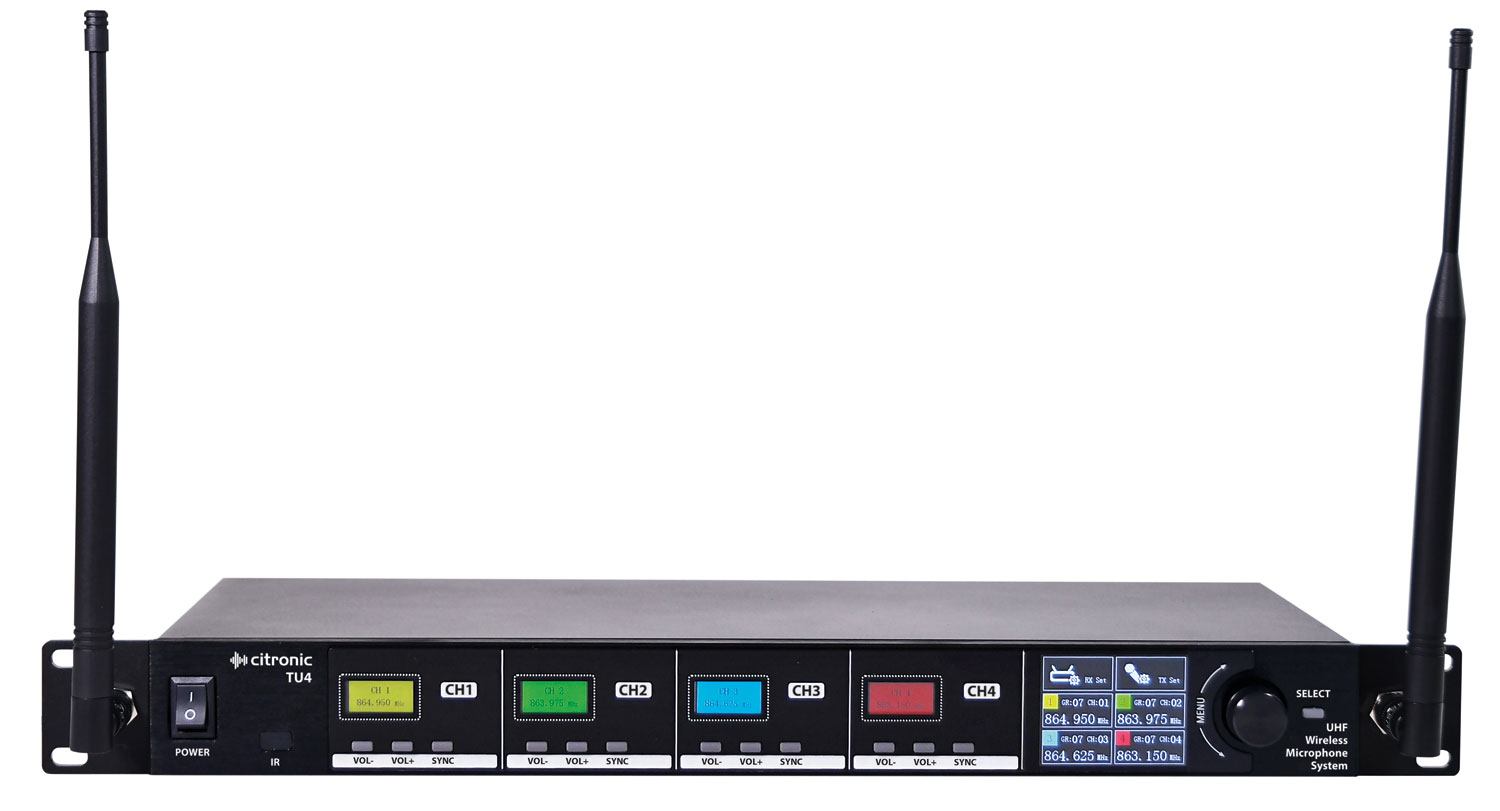

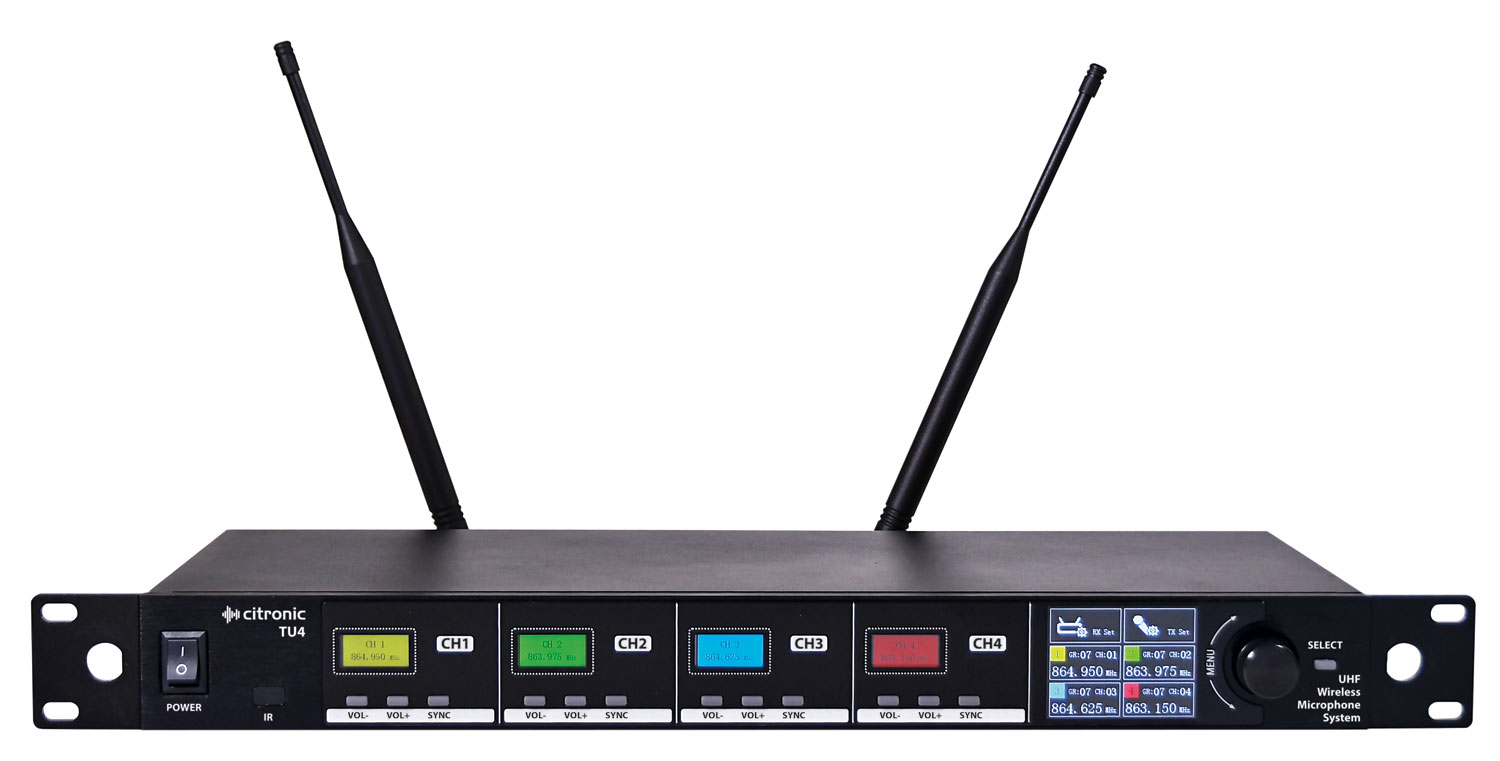

True diversity UHF wireless microphone system with four individually programmable channels that sync to each transmitter to set the carrier frequency, EQ settings, transmission power, and even the display backlight colour for identification. Transmitters are available as either rugged handheld microphones with a high-quality dynamic capsule in a full metal housing or as a compact bodypack with a choice of neckband or lavalier microphones, all with fully balanced signal connection. Twin BNC antennas can be connected at the rear of the receiver or to the front panel when 19" rack-mounted using the supplied BNC extension cables. All 4 channels are tuneable within the license-free UHF and regulated duplex gap bands, arranged in 8 groups of 8-16 carrier frequencies. Both receiver and transmitter settings are programmed via a front panel full colour TFT display with a rotary encoder for parameter adjustments. Each channel has a further backlit display that corresponds to the display on each transmitter and sync's wirelessly via an IR connection, avoiding the complication of multiple controls on each transmitter. For uncompromising wireless performance, the TU4 has been designed to provide a reliable and adaptable system for stage performances, conferences, theatrical productions and other vocal duties.

• Independent 7-band EQ for each channel
• True diversity antennas with internal distro
• Auto frequency sweep function
• Individual XLR outputs or single mix jack output
• License-free operation (863-865MHz) in UK and EU regions

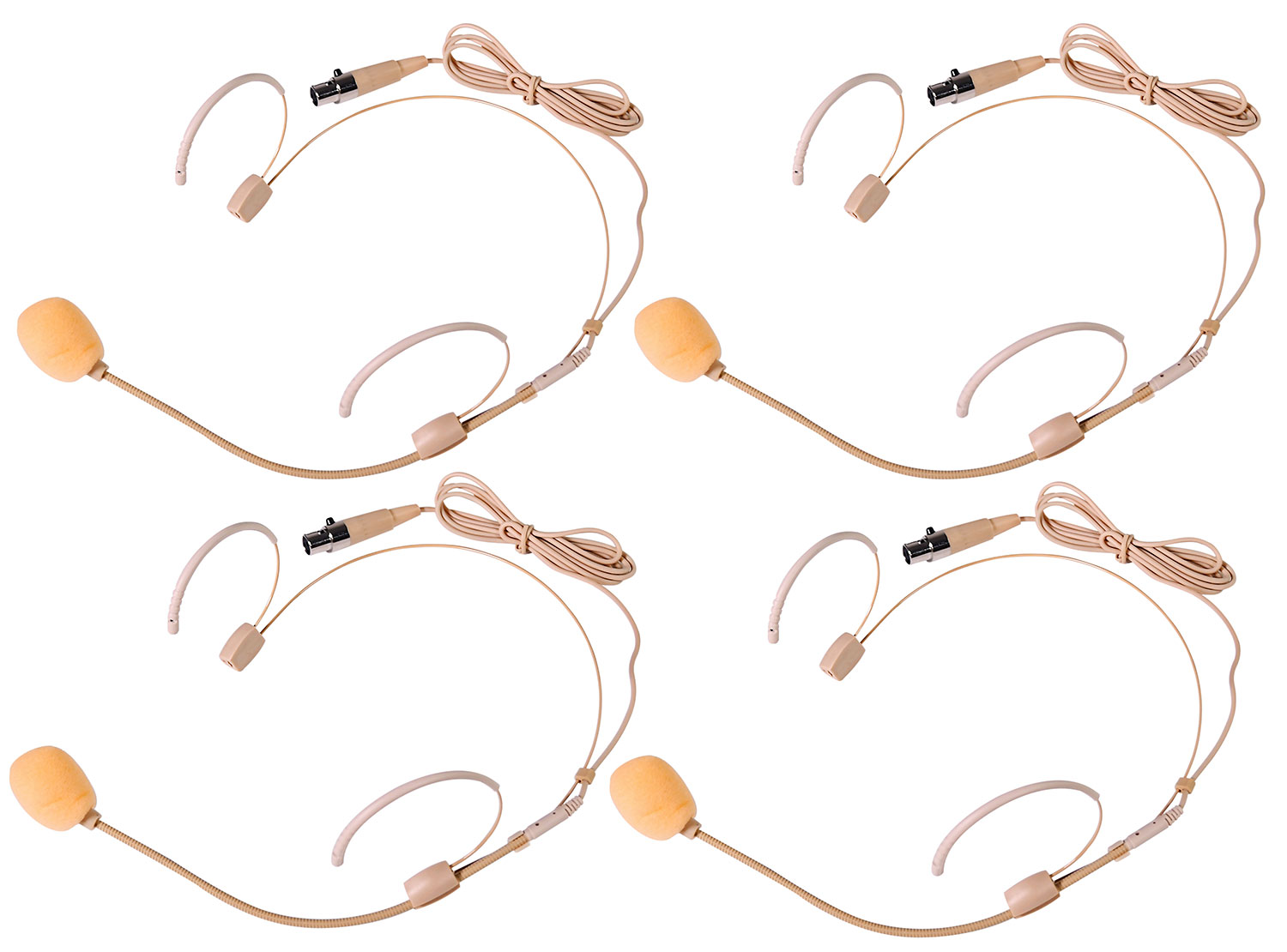

• Bodypack version supplied with both neckband and lavalier microphones

• Dimensions : handheld transmitter N/A
• Weight : handheld transmitter N/A
• Dimensions : bodypack 90 x 60 x 25mm
• Weight : bodypack 74g (no battery)
• Dimensions : neckband microphone 180 x 140 x 60mm
• Weight : neckband microphone 28g
• Dimensions : lavalier microphone 27 x 12mmØ
• Weight : lavalier microphone 23g
• Power supply 12-18Vdc, 1000mA (mains adaptor supplied)
• Batteries 8 x AA
• Carrier frequencies 823-832 / 863-865MHz
• Wireless range Up to 60m

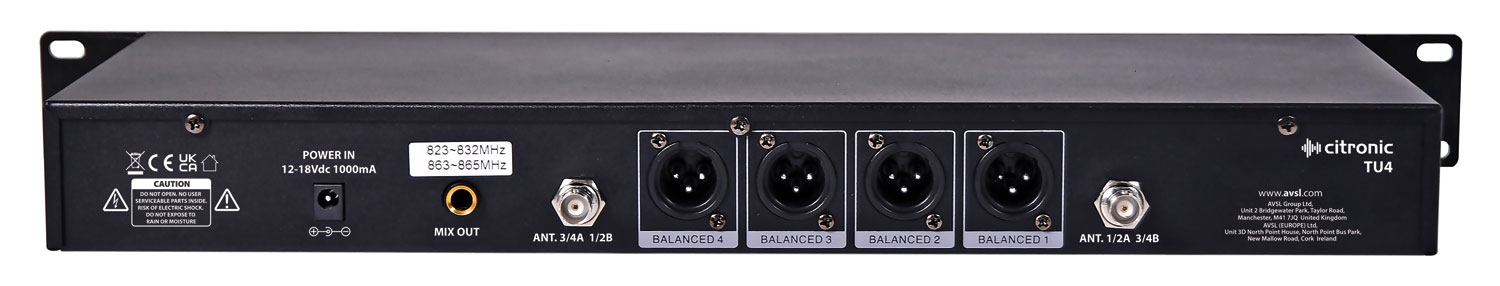

• Antenna connection BNC
• Dimensions : receiver 482 x 185 x 44mm (1U)
• Weight : receiver 1.513kg
