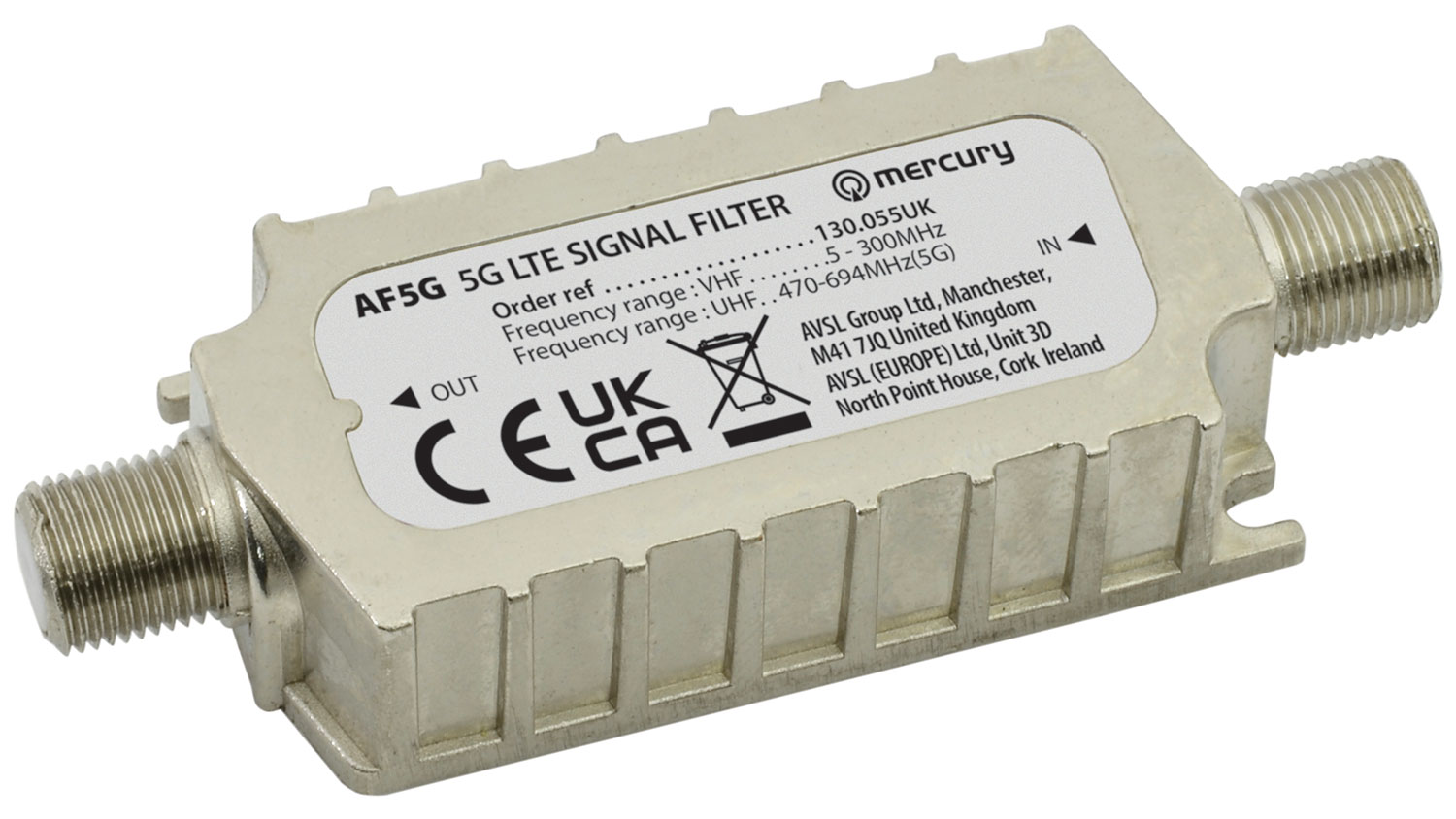

5G LTE In-line Filter

130.055UK
AF5G

5G LTE in-line signal filter designed to eliminate interference and channel loss from 4G and 5G mobile signals. more

  • Fully shielded for minimum signal interference
  • Easy to install, directly plug in-between signal source and TV via F-Type connector
  • DC pass allows power for masthead amplifier
DESCRIPTION VERSION PACKED
130.055UK

5G LTE In-line Filter

Hanging Bag

5G LTE In-line Filter

5G LTE in-line signal filter designed to eliminate interference and channel loss from 4G and 5G mobile signals.

  • Fully shielded for minimum signal interference
  • Easy to install, directly plug in-between signal source and TV via F-Type connector
  • DC pass allows power for masthead amplifier
  • Compatible with Digital TV, Satellite, Cable and DAB/FM radio signals
  • Frequency range : VHF 5 - 300MHz
  • Frequency range : UHF 470 - 694MHz (5G)
  • Insertion loss 4dB
  • Out of band rejection >30dB
  • DC pass 12-24Vdc 300mA max
  • Dimensions 75 x 27 x 16mm
  • Weight 46g
