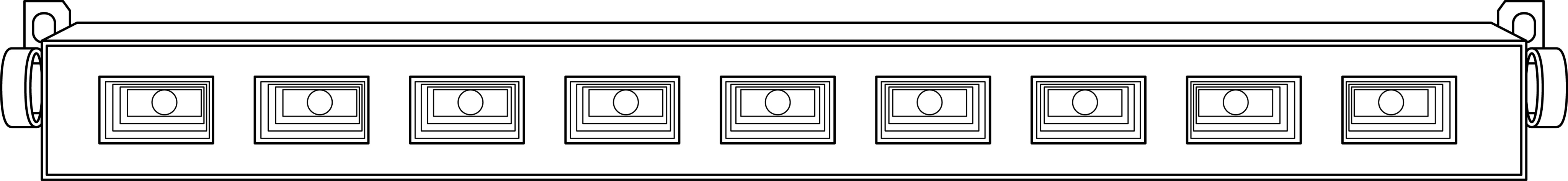

UVB-9
Ultraviolet LED Bar
160.050UK
Introduction
UV LED bars, an easy way to enhance your light show or installation. Ideal for stage, theatre, night clubs, bowling alleys etc.

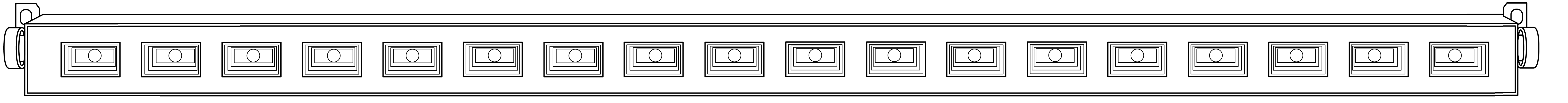

| UVB-9 / UVB-18 | Item ref: 160.050UK, 160.051UK |
|---|---|
| ULTRAVIOLET LED BARS | User Manual |
 |
Caution: Please read this manual carefully before operating | |
|---|---|---|
| Damage caused by misuse is not covered by the warranty |
Safety
- Always make sure that you are connecting to the proper mains supply voltage.
- This product is intended for indoor use only. It must be connected to an earthed mains outlet.
- To prevent risk of fire or shock, do not expose fixture to rain or moisture. Keep away from flammable materials.
- The unit must be installed in a location with adequate ventilation, at least 20cm from adjacent surfaces.
- Ensure that no ventilation slots are obstructed.
- Always disconnect from power source before servicing or replacing fuse and replace with same fuse size and type.
- Maximum ambient temperature is 40°C. Do not operate the fixture at higher temperatures.
- In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself.
- Repairs and servicing must be carried out by qualified service personnel only.
- Make sure the power cord is in good condition and not damaged.
- Never disconnect the power cord by pulling or tugging on the cord.
- Avoid direct eye exposure to the light source while it is on.
Installation
Always ensure that the unit is firmly fixed using the end brackets provided.
Always ensure that the structure to which you are attaching the unit is secure and is able to support the unit’s weight.
It is always advisable to use a safety cable when installing at height in a public place.
Operation
Connect the UV bar to an appropriate mains outlet, ensuring the correct voltage and that cables are in good condition.
Use the in-line power switch to switch power on or off.
Disconnect from mains power when not in use.
Specification
| Specification | Value |
|---|---|
| LED : quantity | 9 x 3W |
| Power consumption | 30W |
| Dimensions | 510 x 60 x 50mm |
| Weight | 0.8kg |
| Power supply | 220-240Vac, 50/60Hz |
| Fuse rating | 3A |
| LED : colour | UV (ultraviolet) |
| Ultraviolet wavelength | 410nm |
| Beam angle | 65° |
Precautions
 |
CAUTION |  |
| RISK OF ELECTRIC SHOCK DO NOT OPEN | ||
| CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL | ||
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit
Safety Notice
- Prior to use, read through this safety guide.
- Pay attention to safety warnings.
- Observe all operating requirements.
- For any items designed for indoor use only, do not operate near water or in humid environments.
- For cleaning, only use a lint-free, dry cloth.
- Install according to the specifications.
- Place away from heat sources or heating appliances.
- During placement, ensure adequate support for the product and access to controls and connectors.
- Do not obstruct any cooling vents or openings and allow adequate space for air flow.
- Use only power connections supplied with the product or suitable equivalents.
- Do not modify the equipment in any way.
- For any mains powered appliances, ensure that the mains voltage is as described in the specifications.
- Keep powered products and batteries away from the reach of children.
- In case of malfunction, water ingress or other damage, consult qualified service personnel.
- Avoid pressure or impact to the housing that may result in damage when transporting or installing this product.
- For any Earthed mains product, ensure that the power supply has a protective Earth connection.
- Keep all packaging materials out of reach of children.
Disposal : The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
AVSL (EUROPE) Ltd, Unit 3D North Point House, North Point Business Park, New Mallow Road, Cork, Ireland
